Box Hearing Aids for the Elderly Binaural Hearing Loss Deaf Headphones

Description

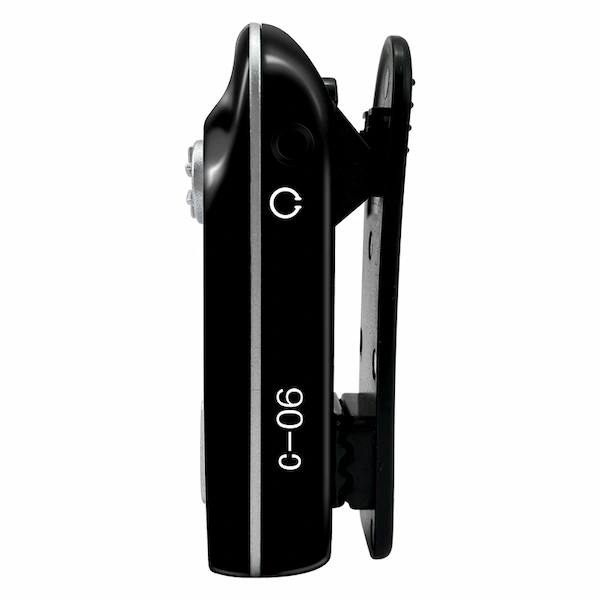

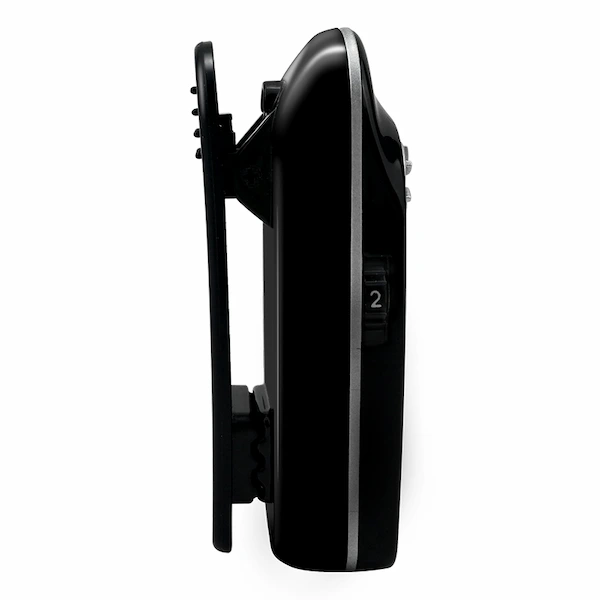

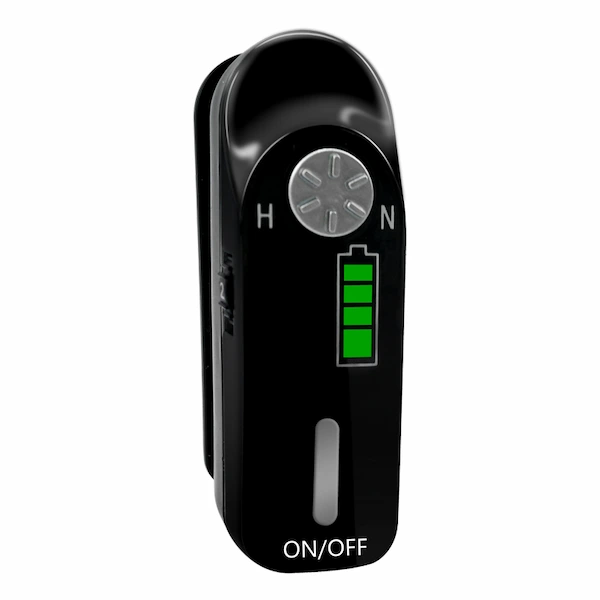

This Body-worn sound collector hearing aids have a small box that clips to clothes or fits inside a pocket. This is connected by a lead to the earphone. Some seniors and old people find this mini pocket hearing aids easier to use than the ITE of In the ear types hearing aids since they are large enough and the controls easy to operate. Besides, the portable pocket hearing aid can be worn on the waist belt, trousers pocket, and cloth pocket which is convenient and easy to use.

【Application】Hearing compensation of patients withair conduction hearing loss
【Inapplicable population】Patients with acute externalotitis, tympanitis,chronic suppurative otitis media (inthe purulent infection period)and acute suppurativeotitis media are not suitable for wearing air conductionhearing aids and are allergic to this product material

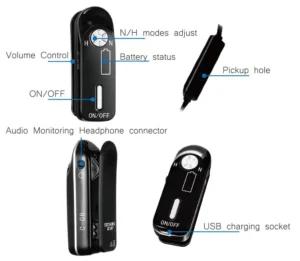

Main Structure

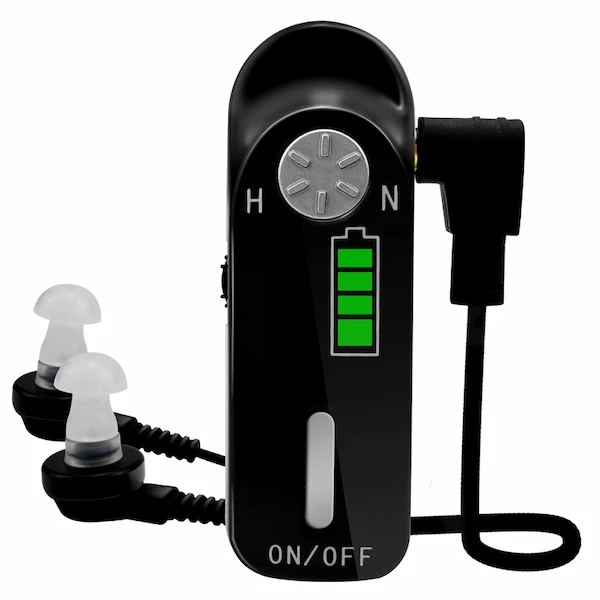

The Hearing Aid is composed of the main device andthe earplug(the appearance of the product is subjectto the physical object)

Installation Instructions

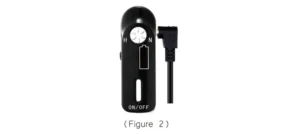

1.Please connect the earplug connector(hard rubber )to the earphone,and then connect the earplug to theearplug connector(Figure 1)2.Please connect the other end of the wire to themain device(Figure 2)

Cautions, Warnings and Suggestive Notes
1.How to turn on: Shot press“ON/OFF”, the battery(LED)is on,displaying the current batterystatuspower about5seconds,it means boot and worknormally.In the“ON”state, LED1 and LED5 flashevery 5 seconds or so,indicating that the device isworking.lf you need to test the battery power, longpress the”ON/OFF”for more than 3 seconds, andthe battery power will be displayed.
lass=”yoast-text-mark” />>2.Battery status mode:1bar of power means lowpower left;2 bars of power mean little power left; 3bars of power mean medium power left;4 bars ofpower mean enough power left.

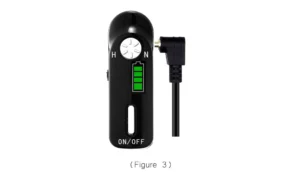

3.How to turn off:In the“ON”state,short press“ON/OFF”,the bottom LED(Figure 3)flashes twiceand shuts down.

Operation Instructions

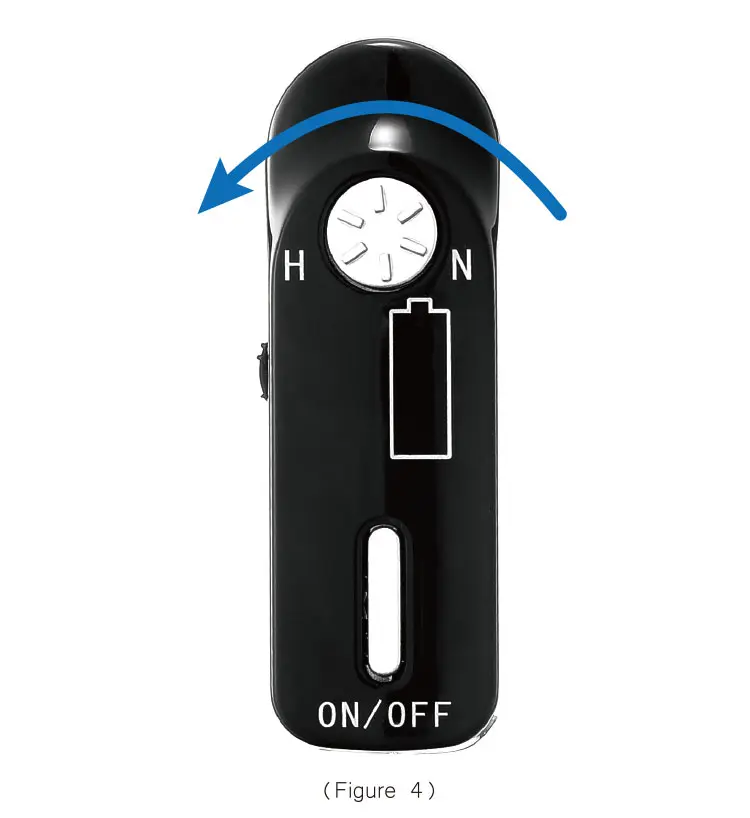

Adjust the volume knob to clear sound。lf the soundseems empty or noisy,please adjust the “N-H” to the”H” direction, which can compress the low frequencyto reduce the noise(Figure 4).

Charge Method
1.When the sound of the hearing aid becomes smallor does not work normally,it may be that the batterypower is low,please charge the hearing aid.

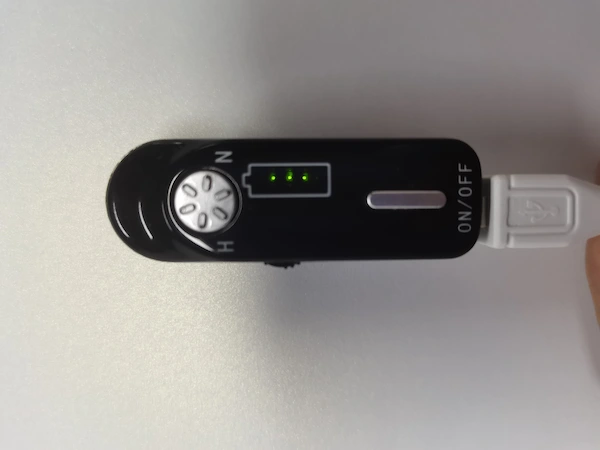

>2.When charging, plug one end of the USB into thepower adapter,and the other end into the hearing aid,and plug the power adapter into the 100V-240vmainspower socket(Figure 5).
>3.When charging, battery status reference :
1 bar of power flashes for low power;
2 bars of power flash for less power;<br />3 bars of power flash for medium power;
4 bars of power flash enough power.
>All 4 bars of power are on and the fourth bar stopsflashing, battery is sufficient.

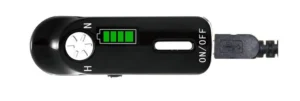

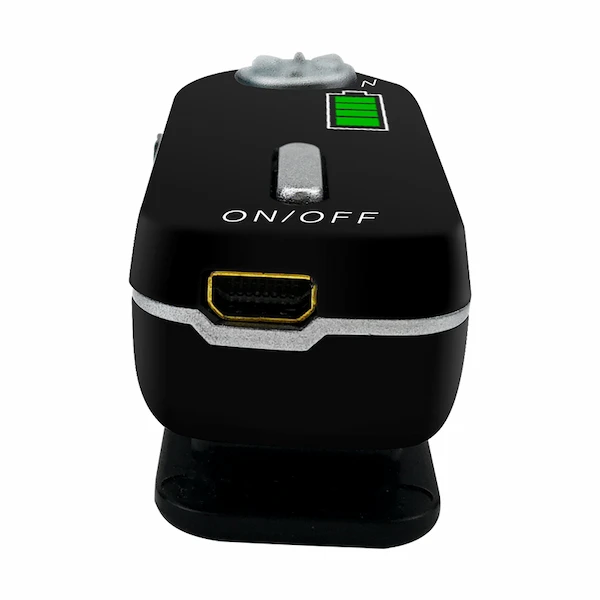

4.USB plug with this “f”sign is the front side, plugthis side up into the main device to charge(asshown in the picture)

Charge Method
1.There is a built-in lithium battery, which can be rechargedfor use.
2. The machine should be charged in the shutdown state; when the hearing aid is charging, it can not work.
3. The new battery needs to be fully charged for at least 4hours; the first time is completely used up and then fully charged, and the second time is completely used up and then fully charged; after three consecutive cycles, the battery is easily to reach the best use state. If you don’t use it for a long time, charge it once a month.
4.In the process of charging,if the power adapter andhearing aid have a certain temperature, is normal.
5. The battery power will decrease naturally if the machine is not used for a long time.
>6.Do not remove or modify the battery
7.The parameters of the power adapter matched with themachine:input AC 100V-240V output DC5V50mA~500mA
8.AWarning: Do not touch the power adapter with a wethand when the hearing aid is charging,it may be dangerous:Do not use the hearing aid when charging.

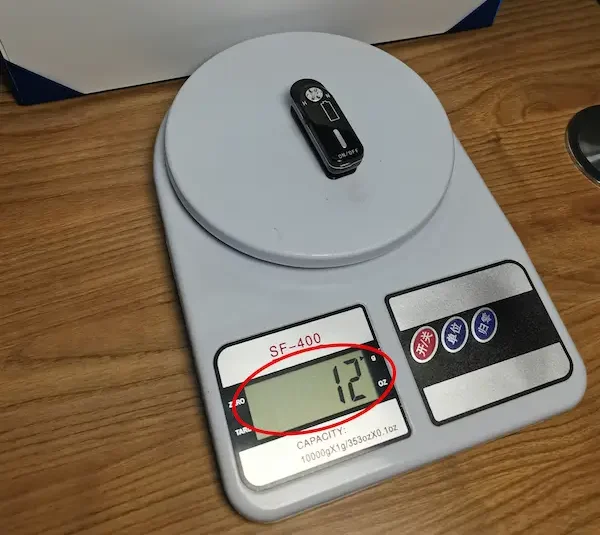

Product weight /g

Charging status

The flashing light flashes during charging and remains on constantly when fully charged
